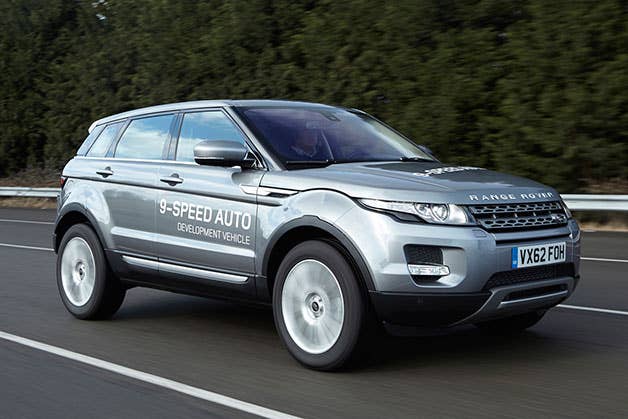

Among the future shocks to be shown at the rapidly approaching Geneva Motor Show, Land Rover will be displaying a nine-speed transmission it has been working with ZF to develop. Engineered for transverse – read: usually front-wheel drive – applications, the ZF 9HP will replace the six-speed transmission in the Evoque come 2014.

The three extra ratios add just a quarter of an inch in length to the case, yet it's 16.5 pounds lighter than that six-speed. The built-in benefits of the extra gears are better fuel economy and lower emissions, and the even lower gears possible will improve the Evoque's (never-used) off-road capability. The designed benefits are an adaptive shifting system that tailors the transmission to the driving style, a skip-shift function that avoids the need to move sequentially through the gears, and "Fast-Off" and "Curve" modes that take two different approaches to managing upshifts.

While it is the Evoque that breaks the news, it is rumored that the Dodge Dart will be getting this South Carolina-built transmission as well.
Show full PR text
LAND ROVER TO DEMONSTRATE THE WORLD'S FIRST NINE-SPEED AUTOMATIC TRANSMISSION

• Land Rover announces new ZF nine-speed automatic transmission for transverse applications
• Increasing the number of gear ratios to nine will help reduce emissions and improve efficiency
• Lower gear ratios enhance all-terrain and all-weather capability
• Adaptive shift system matches and remembers customer driving style for a tailored driving experience
• Land Rover is lead partner on this project with ZF, a world leader in transmission technology


(MAHWAH, NJ) February 26, 2013 - Land Rover will demonstrate the world's first nine-speed automatic transmission for a passenger car at the 2013 Geneva Motor Show. The ZF 9HP transmission is designed for transverse applications, and is one of the most efficient and technically advanced transmissions ever used in a production vehicle. Land Rover is the lead partner with ZF on this project.

Increasing the number of gear ratios from six to nine will help reduce emissions
and improve efficiency. Smaller ratio steps also give improved response during acceleration, with improved shift quality and refinement. A higher top gear improves efficiency by lowering engine speed, which also improves comfort and reduces noise when cruising at highway speeds.

The 9HP is quite robust and complements the all-terrain capability expected of a Land Rover vehicle while delivering exceptionally high levels of refinement and efficiency. The lowest ratio in the 9HP is lower than the existing six-speed transmission and is designed for off-road use, towing, and on-road conditions like steep gradients.

Whereas the existing six-speed transmission makes downshifts sequentially, the 9HP has a skip-shift function for much swifter downshifting to meet rapid deceleration demands. If the driver requests a downshift when the vehicle is travelling too fast for the selected gear, the transmission will remember the request and make the shift when the speed drops to an appropriate level. "Fast-Off" mode measures the rate of throttle release, anticipates further requests by the driver for high power, then holds the gear if necessary.

The torque converter incorporates a multi-stage damper system for smoother pull away and improved refinement. An innovative adaptive shifting system matches the driver's mood within seconds, sharpening up during brisk driving and then seamlessly shifting to a more economical program when taking a more relaxed driving approach. Additionally, "Curve Mode," detected acceleration/deceleration forces, and pedal position all control upshift timing.

The 9HP is masterfully packaged and despite the extra three gear ratios is only 0.24 inches (6mm) longer and actually weighs 16.5 lbs (7.5kg) less than the outgoing six-speed transmission. The compact packaging is achieved by using a number of innovative design features: A new compact hydraulic vane-type pump, two patented dog clutches replacing bulkier conventional clutch packs, and a nested gear set.

Land Rover and ZF are on-going partners in transmission development; having jointly developed fully integrated transmission solutions in the Range Rover, Land Rover LR4 and Range Rover Sport. The new nine-speed transmission will be produced at ZF's Gray Court facility in South Carolina, USA.

# # #
