• Feb 13, 2008

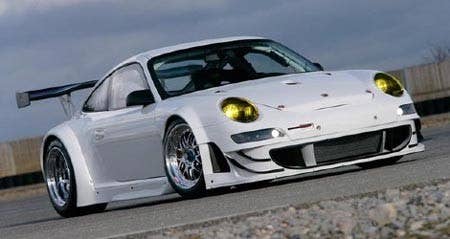

click above for more photos of the Porsche 911 GT3 RSR

Porsche is the biggest name in endurance sportscar racing worldwide, and its racing engineers plan on keeping it that way. Following the introduction of the GT3 Cup S comes a new-and-improved version of its big brother, the GT3 RSR. The most powerful 911-based racer Porsche makes, the RSR produces 465 horsepower from its 3.8-liter flat-six, and revs all the way to a 9400rpm redline. Although the engine carries over unchanged from the previous version, improvements have been made to the aerodynamics, suspension and transmission. Most visible is the new front end, with additional "flick" spoilers, enhanced air intakes and aerodynamically-optimized air outlets. The suspension offers a wider range of adjustability, and the RSR now features the six-speed sequential gearbox from the even-badder RS Spyder sports-prototype.

Despite its alphanumeric designation, the GT3 RSR actually competes in the GT2 class, where it will face stiff competition from the likes of the Corvette C6R, Ferrari F430 GT2 and the upcoming Aston Martin Vantage GT2.
Thirty-five orders for the new GT3 RSR have already been placed, at nearly €350,000 apiece, and are being filled by Porsche's Weissach workshop. Check out the images in the gallery below and the press release after the jump.

[Source: Porsche]


PRESS RELEASE

Porsche GT3 RSR considerably improved

The Porsche GT3 RSR launches into the new model year with extensive modifications. The most powerful race car based on the Porsche 911, which last year scored wins at the 24 hour races of Le Mans and Spa as well as overall victory at the Nuerburgring 24 hours, competes in the GT2 class at international long distance races. The most distinguishing feature of the new GT3 RSR is the front end which received major improvements to the aerodynamics. The majority of innovations however are hidden under the weight-optimised body.

Aside from the easily recognisable additional spoilers on the front apron, so-called flicks, an optimised air ducting with newly-designed side air outlets generates more downforce and reduces drag. The rear end including the rear wing was taken over from the predecessor. Extensive changes to the suspension cinematics increase mechanical grip considerably. The range of possible suspension set-ups was broadened.

The 3.8-litre boxer engine of the GT3 RSR remains unchanged apart from slight improvements to details. It delivers 465 hp (342 kW) at 8,000 revs per minute and delivers a maximum torque of 430 Nm at 7,250 revs. The rev limiter of the efficient six-cylinder kicks in at 9,400 rpm.

Much of the know-how in the GT3 RSR's totally new gearbox has come from the RS Spyder sports prototype. The sequential six-speed unit, developed by Porsche engineers, is considerably lighter than its predecessor. Internal friction was substantially reduced. The flat angle of the drive shafts allows teams a wider range of suspension set-ups.

Aside from the GT3 Cup and the GT3 Cup S, the GT3 RSR is the third race car based on the Porsche 911 offered by Porsche Motorsport. Thirty-five units of the fastest and most powerful long distance racer made in Weissach, apart from the exclusive RS Spyder sports prototype, are now being produced and delivered to customer teams around the globe. The price of the GT3 RSR is 349,800 Euro plus VAT.


Technical Description Porsche GT3 RSR (2008)

Engine

Six-cylinder aluminium boxer engine, water-cooled; 3,795 cc; stroke 76.4 mm; bore 102.7 mm; 465 bhp (342 kW) at 8,000 rpm; max. torque 430 Nm at 7,250 rpm; air restrictors 2 x 29.5 mm; maximum engine speed 9,400 rpm; four valves per cylinder; dry sump lubrication; individual throttle butterflies; central air intake; electronic MS 4.0 engine management;
fuel injection; fuel grade: RON 98 Super Plus unleaded.

Power transmission

Six-speed gearbox with sequential jaw-type shift; oil/water heat exchanger; single-mass flywheel; hydraulic disengagement lever; three-plate carbon-fibre clutch; rear wheel drive; limited-slip differential 45/65 %.

Body

Monocoque body (basis GT3 RS) of hot-galvanised steel; aerodynamically optimised front end with front spoiler; aerodynamically optimised front underfloor; adjustable rear wing; 90-litre safety fuel tank with fast filling function; air jack; welded-in safety cage; bucket-type racing seat (on driver's side only) with flame-resistant seat cover; six-point seat belt adapted for use of the HANS Head and Neck Support; electric fire-extinguishing system.

Suspension

Front: McPherson spring strut axle; Sachs four-way gas pressure dampers; double coil springs (main and ancillary spring); front axle arms adjustable for camber; adjustable sword-type anti-roll bar on both sides; power steering.
Rear: Multi-arm axle with rigidly mounted axle sub-frame; Sachs four-way gas pressure dampers; double coil springs (main and auxiliary spring); rear axle tie-bar reinforced and infinitely adjustable; adjustable sword-type anti-roll bar on both sides.
Complete suspension infinitely adjustable (height, camber, track).

Brakes

Brake system with balance bar control.
Front: Single-piece six-piston aluminium fixed callipers; inner-vented, 380 mm in diameter; racing brake pads.
Rear: Single-piece four-piston aluminium fixed callipers; inner-vented, 355 mm in diameter; racing brake pads.

Wheels

Front: Three-piece BBS light-alloy wheels (11J x 18-34); central bolt;
Rear: Three-piece BBS light-alloy wheels (13J x 18-12.5); central bolt.

Electrical System

Motec display with integrated data recording; adjustable traction control; battery: 12 volt, 50 Ah, 140 Ah alternator.

Weight

Approx. 1,225 kg complying with A.C.O. regulations, 1,200 kg complying with FIA regulations.
